160-400mm PVC Water Convey Pipe Machine

  • 160-400mm PVC Water Convey Pipe Machine
  • 160-400mm PVC Water Convey Pipe Machine
  • 160-400mm PVC Water Convey Pipe Machine
  • 160-400mm PVC Water Convey Pipe Machine

160-400mm PVC Water Convey Pipe Machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 50 Days
    Packaging: film wrap and fixed in container
    Productivity: 250-350kg/h
    Brand: huade
    Transportation: Ocean
    Place of Origin: china
    Supply Ability: 10set per month
    HS Code: 8477800
    Port: Shanghai

Basic Info

Model No.: 160-400

Product Description

Plastic PVC/UPVC/PE/PP/PPR/LDPE Water Sewer/Pressure/Electricity Conduit Pipe/Tube/ Corrugated Pipe Extrusion/Extruding Making Machine Price

PVC mono-layer sewer pipe production line

Diameter Range (mm): 160 180 200 250 280 315 400 wall thickness by request

Main Extruder Motor Power: 55kw

Line Space Occupation: 36mx4mx3m

Capacity: 300-400kg/h

Pipe Pvc 1630094

Introduction of complete extrusion line :

The complete extrusion line including SJZ80/156 twin screw extruder,die head ,vacuum calibration tank.4 caterpillar haul off,planetary cutter,film wrapped machine,pipe socket machine and so on.

160 400 Pvc75

Features:

High automation

Stable running

Lower maintenance

High quality product


Main Technical Datas and images for mono layer PVC pipe production line :


Screw Feeder

To feed material into extruder

Dtc Series Automatic Charger

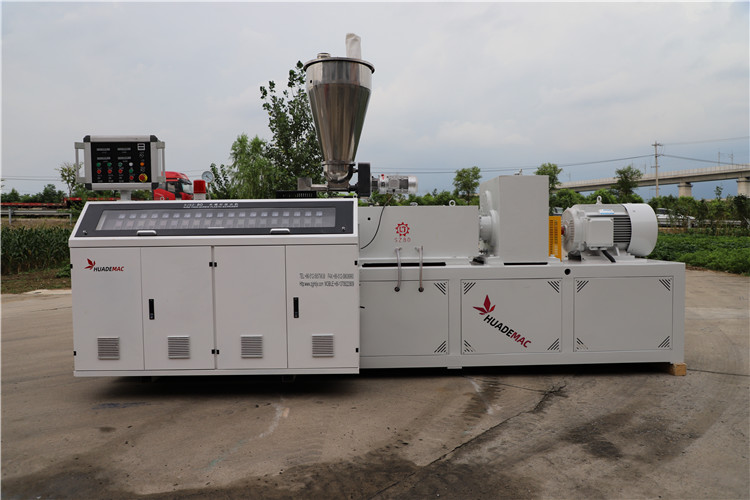

SJZ80/156 conical twin screw Extruder

Capacity: 300-400kgs/h

• Motor power: 55kW

• Material of screw & Barrel: 38CrMoAl & Bimetallic

• World famous brand electrical component such as Siemens, Schneider, ABB etc

•High torque gearbox with adopts NSK/SKF bearing;

• Siemens motor achieved global after service;

• Bimetallic screw and barrel;

• PID automatic temperature controller .

Sjz80 156 Twin Screw Extruder


Die head (including bush,pin and calibration sleeves )

40Cr material
Size :160 180 200 250 315 400 mm
Complete set include extrusion die head, Slotting & water ring type calibration sleeve

Materials: 40Cr Steel

Structure: Spiral or Basket

Single cavity design

single layer design


Die Head

Bush Calibrator 750


Vacuum Calibration tank

Tank materials: 4mm 304 S. S.Materials

Length 6000mm

High pressure and stable water jet.

Pressure protection design

5.5kw Water Pump and 5.5kw Vacuum Pump

Vacuum Tank 202008081259323

4 Caterpillar haul-off

Upper and lower caterpillar is driven separately by the frequency inverter

High friction fact and anti-wear out silicon rubber Pads

Metering counter device

Haul Off 4 Caterpillar 202008080924165

4 Caterpillar 20200


Planetary cutter

• Planetary saw cutter enter knife by hydraulic drive

• Cutting saw: steel alloy, specific for cutting U-PVC pipe.

• Equipped cast aluminum compacted block for accurate cutting

• Synchronous control

• Chamfering function for optional


Planetary Cutter 20200808092417

Blade Of Cutter 202008080924168

Stacking

Stainless steel 304 as touching material

Discharge driving by air cylinder

Img 0163


Belling Machine 202008080924174

Final product show :

Pvc Pipe 315

Complete PVC 400mm sewer pipe extrusion line :

Line 2020080812593229

Pvc Pipe Auxiliary

Workshop 2Packaging
